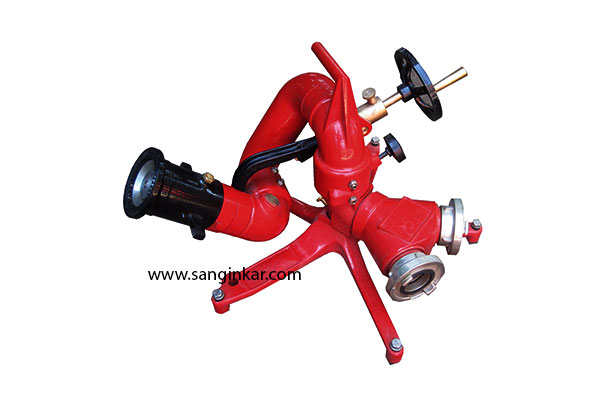

Portable Monitor
Model: SKS-GM2000
Flowrate: 2000LPM
Material: Al alloy
Working Pressure: 10-12 bar
Throwing: Approx.50m
Vertical Rotation: -15 ̊ ~ +75 ̊
Horizontal Rotation: -360 ̊
Operation: Manual- Fog/Jet Spray
Weight: 22 kg
Model: SKS-GM2000
Flowrate: 2000LPM
Material: Al alloy
Working Pressure: 10-12 bar
Throwing: Approx.50m
Vertical Rotation: -15 ̊ ~ +75 ̊
Horizontal Rotation: -360 ̊
Operation: Manual- Fog/Jet Spray
Weight: 22 kg
Flowrate: 3000LPM
Material: Al alloy
Working Pressure: 10bar ~ 12 bar
Throwing: 50m ~ 60m
Operation: Manual or Electrical- Fog/Jet Spray
Vertical Rotation: -15 ̊ ~ +75 ̊
Horizontal Rotation: 360 ̊ (Manual) – 270 ̊ (Electrical)
Standard: ISIRI 7854
Model: SKS-MON4000
Flowrate: 4000LPM
Working Pressure: 10bar ~ 12 bar
Material: Al alloy
Throwing: 60m ~ 70m
Operation: Manual or Electrical- Fog/Jet Spray
Vertical Rotation: -15 ̊ ~ +75 ̊
Horizontal Rotation: 360 ̊ (Manual) – 270 ̊ (Electrical)
Standard: ISIRI 7854
Chassis: 2 axles
High Capacity Foam Concentrate Storage: Trailer is built to carry 1000 L of concentrate.
Fixed Master Stream Vertical Waterway: Pre-piped vertical waterway constructed from 4” pipe running through a lever operated butterfly valve. The waterway is supplied by two 2-1/2” BS-336 or two Storz inlet connections mounted one connection point, dual 2-1/2” or Storz, on each side of the trailer.
Master Stream: Pre-piped single waterway Aluminum monitor flows 3000LPM with minimum friction loss. The Sangin Kar Sanat Monitor is designed for 360 degree rotation with positive lock and is built with stainless steel ball bearings at each swivel joint. Equipped with venturi for direct foam suction with adjustable valve.
Wheels and Tires: Aluminum wheels with ST225-75-R15 tires
Stabilizing Jacks: All trailers are equipped with adjustable jacks on 4 sides and hand brake and
Frame trailers.
Trailer capacity: 3 ton
Safety: NFPA 1901
