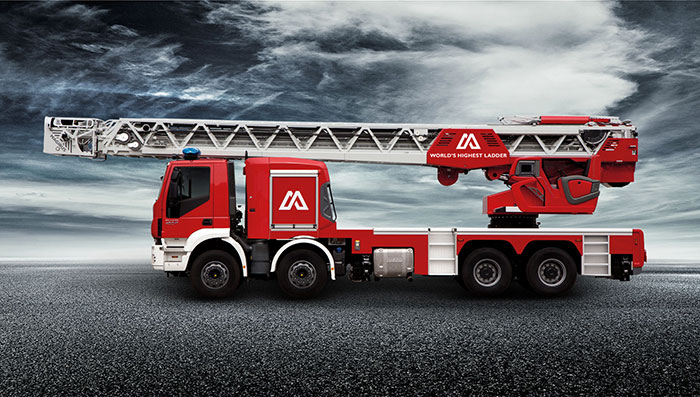

TURNTABLE LADDER M68L

VEHICLE’S MISSION:

The MAGIRUS Turntable Ladder “M68L” is a self propelled hydraulic ladder designed for effective rescue and fire fighting operations from high rise building and giving access to high rise locations. When the ladder is fully extended has a max. working height is 68M from ground level and is suitable for any intermediate height with possibility of vertical & horizontal simultaneous movements at the same time without mutual interference.

DIMENSIONS (valid for both type, Single Cab & Double Cab)

Overall Length 13 M Overall Width 2,50 M (rear view mirrors excluded) Overall Height 4,10 M.

WEIGHTS:

G.V.W. 40000 kg Operational weight 32500 kg approx (± 2,5% according to the options selected)

PERFORMANCES:

Maximum speed 100 Km/h approx.

TURNTABLE LADDER:

Working Height: 68 M from ground level Rotation 360° Elevation From -10° up to +75° Ladder Sections Qty (7) telescopic sections
