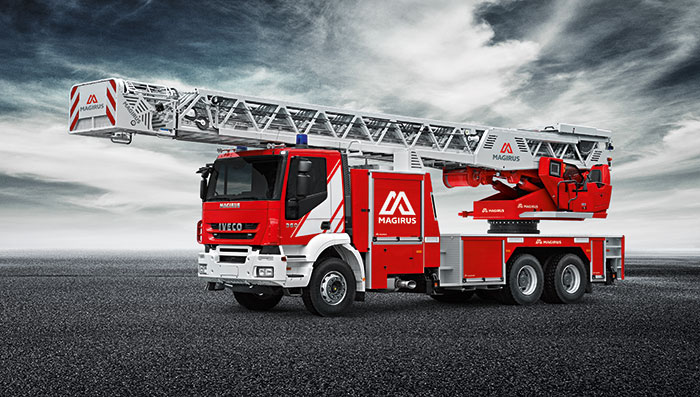

TURNTABLE LADDER M60L
VEHICLE’S MISSION:
The MAGIRUS Turntable Ladder “M60L” is a self propelled hydraulic ladder designed for effective rescue and fire fighting operations from high rise building and giving access to high rise locations. When the ladder is fully extended has a max. working height is 60M from ground level andissuitable for any intermediate height with possibility of vertical & horizontal simultaneous movements at the same time without mutual interference.
DIMENSIONS (valid for both type, Single Cab & Double Cab)
Overall Length 13 M Overall Width 2,50 M (rear view mirrors excluded) Overall Height 4 M.
WEIGHTS:
G.V.W. 33000 kg Operational weight 28500 kg approx (± 2,5% according to the options selected)
PERFORMANCES:
Maximum speed 100 Km/h approx.
TURNTABLE LADDER:
Working Height: 60 M from ground level Rotation 360° Elevation From -17° up to +75° Ladder Sections Qty (6) telescopic sections
